How to Install Geocell Ground Grid?

Grade and compact the subgrade, place geotextile if needed, expand and pin the geocell ground grid, connect panels, fill with approved aggregate or soil, compact in thin lifts, and finish drains and edges for long-term stability.

You will see the exact prep, anchoring, infill, and compaction methods used on roads, yards, and slopes. You will also learn when to choose HDPE geocell vs PP geocell for strength, creep control, and chemical resistance.

What prep do you need before installing a geocell ground grid?

Soft spots, poor drainage, and rough grading slow crews and raise costs. Clean prep gives you faster installation and better performance.

Site prep is simple: strip organics, shape grade, proof-roll, undercut weak areas, compact to spec, and add a geotextile separator when soils are fine or saturated. This gives the geocell grid a stable, uniform base.

Dive deeper

A geocell relies on uniform support. Start by removing organics and debris so the geocells sit flat. Cut high points and fill low points to achieve plan grade (±10–15 mm). Proof-roll with a loaded vehicle or roller to find pumping zones. Undercut any yielding pockets and replace with granular material compacted in 150–200 mm lifts. On silty or clayey subgrades, place a nonwoven geotextile separator (AOS matched to soil D85–D90) to stop fines from migrating into your base. Check moisture; near-optimum moisture content speeds compaction and reduces rutting during construction traffic. Mark utilities, water flow paths, and the planned edge restraint line before you start. Stockpile infill near the work front to cut cycle time. Confirm access for plate compactors and small rollers because you will compact inside cells in multiple passes. This prep eliminates rework, helps the geocell ground grid distribute load, and reduces total infill volume because the cells do not waste stone filling ruts.

Prep item	Target	Why it matters
Subgrade density	≥95% Std. Proctor (project spec)	Limits settlement and rutting
Grade tolerance	±10–15 mm	Uniform cell height and infill depth
Separator geotextile	AOS vs soil, adequate gsm	Prevents fines pumping
Proof-rolling	No visible pumping	Finds weak zones early

How do you place and anchor the geocell grid?

Panels can creep or shift if you do not open, align, and pin them correctly. Good anchoring makes installation fast and predictable.

Expand the geocell evenly, align to string lines, connect panels tightly, and stake perimeter and seams before loading infill. Use more anchors on slopes and soft ground.

Condition	Anchor type	Spacing guide
Flat, firm subgrade	12–16 mm rebar pins	1.0–1.5 m at edges/seams
Flat, soft subgrade	Rebar pins + washers	0.8–1.0 m
Slopes ≤1V:2H	Rebar pins (top/bottom rows)	0.6–0.8 m; add crest trench
Slopes >1V:2H	Rebar pins + deadman/crest trench	Engineer’s detail

How do you fill and compact a driveway geocell?

Driveways fail when infill segregates or lifts are too thick. Controlled placement locks the cells and spreads load.

Use well-graded aggregate, place in thin lifts, compact progressively, and protect edges. A driveway geocell delivers a stiff, low-rut surface with less stone and faster installation.

Infill choice	Typical use	Notes
Crushed stone 0–25 mm	General driveways, yards	Strong interlock, drains well
Gravel + fines (road base)	Low-dust surfaces	Compact in thin lifts
Sand + binder	Equestrian/paths	Needs edging and maintenance
Topsoil + seed	Green drives	Lower bearing; limit traffic while rooting

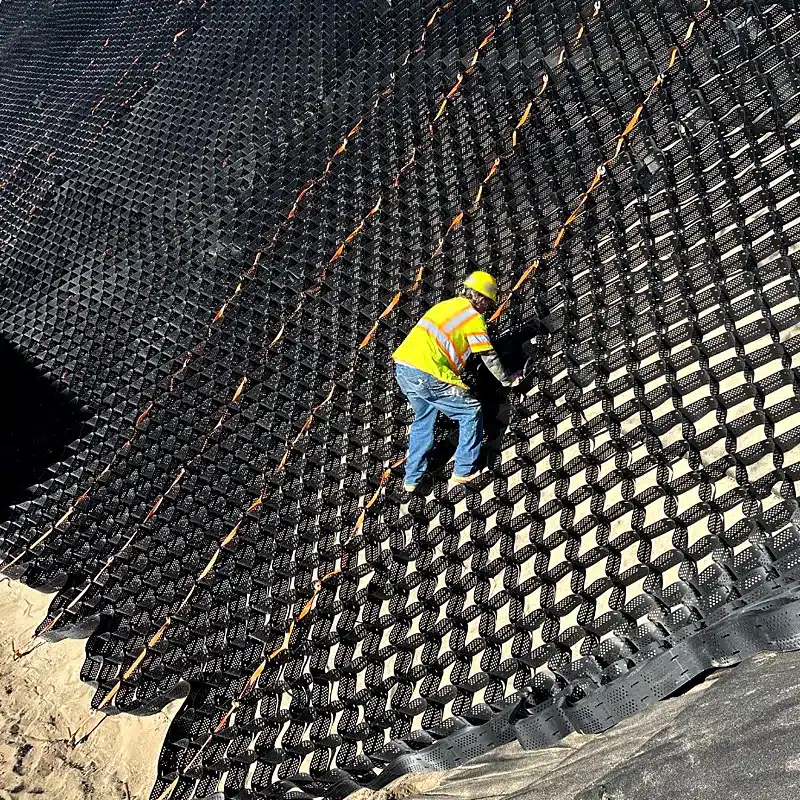

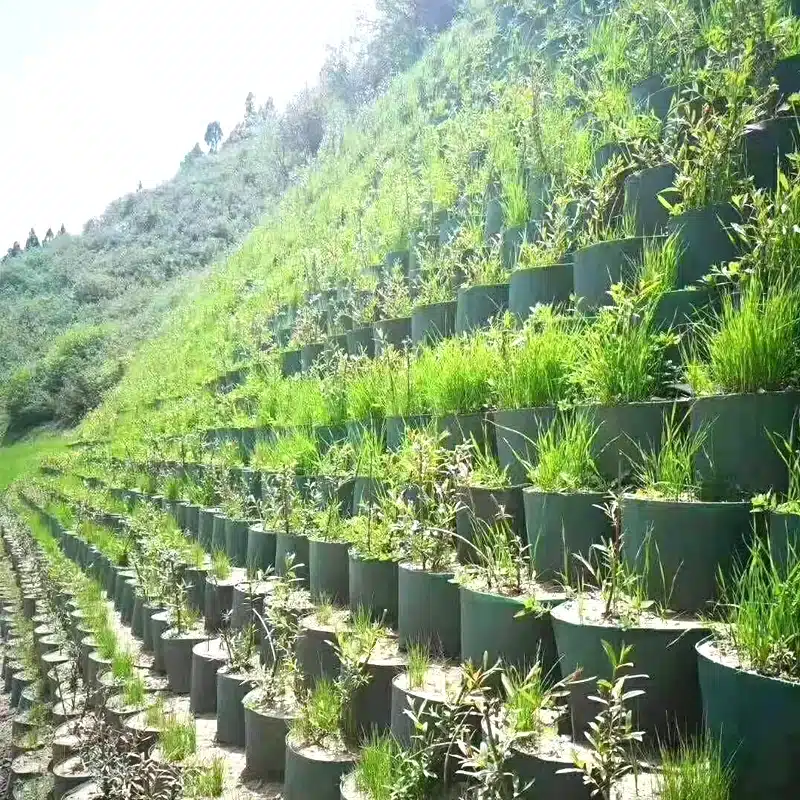

How do you install a geocell grid for slope protection?

Unanchored cells slide; poorly chosen infill erodes. Anchoring and infill selection control stability and long-term appearance.

Pin the geocell grid at crest and toe, add intermediate rows, choose soil, rock, or concrete infill by slope and flow, and connect sections tightly to resist shear.

Slope condition	Recommended infill	Extra measures
≤1V:2.5H, landscaped	Topsoil + seed	Temporary mulch/blanket
≤1V:2H, moderate flow	10–20 mm rock	Closer pin spacing
Channels/high flow	20–50 mm rock	Toe key + filter geotextile
Chutes/critical	Lean concrete	Expansion joints at panels

Which polymer should you choose—HDPE geocell or PP geocell?

Wrong polymer raises creep and chemical risks. Matching polymer to load, temperature, and environment protects your warranty and budget.

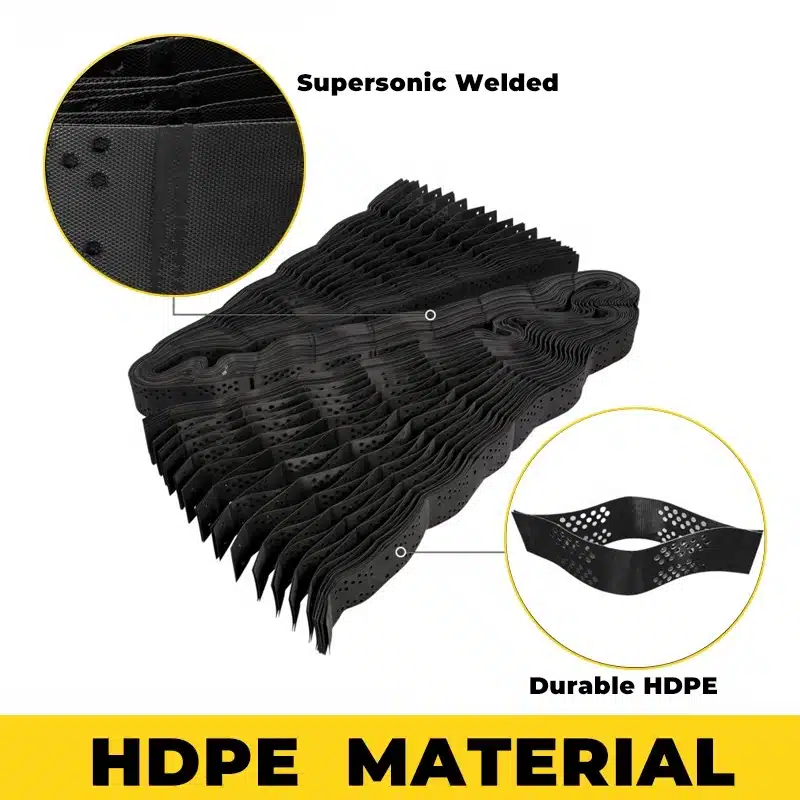

HDPE geocell suits most civil works for toughness and weld consistency. PP geocell offers higher stiffness and lower creep at service temperature in select designs. Choose by chemistry, not habit.

Property	HDPE geocell	PP geocell
Ductility/impact	Higher	Moderate
Initial stiffness	Moderate	Higher
Creep at service temp	Good	Very good (design-dependent)
Chemical resistance	Broad (fuels, salts)	Good; check specific media
Weld process window	Wide	Narrower; close QC

Conclusion

Prepare the base, anchor well, fill in thin lifts, and compact. Match polymer and infill to the job. Your geocell ground grid will stay stable and pass inspection.
