Geocell Ground Grid Installation: Pro Contractor Guide

Quick take: Prep the subgrade, roll a separator, expand and anchor the geocell, infill in 4–6” lifts, compact flush, and finish the surface. Follow this sequence and U get a stiff, rut-resistant base for driveways, access roads, paths, and green parking.

---

What Is a Geocell Ground Grid?

A geocell ground grid is a 3D honeycomb made from HDPE that locks aggregate or soil inside each cell. The confinement gives lateral restraint, spreads wheel loads, and controls erosion—so thin sections perform like thick ones.

• How it works
  • Cells confine the infill to stop sideways movement and fines pumping.
  • Hoop strength distributes loads wider, cutting stress on weak subgrade.
  • On slopes, cells slow runoff and hold vegetation in place.
• Where U use it
  • Driveways & pads: stable, low-maintenance lanes that don’t rut.
  • Trails & paths: clean edges, predictable surfaces.
  • Slopes & channels: erosion control with rock or vegetated finishes.

---

Tools & Materials (What to Bring)

• Geosynthetics: HDPE geocell panels, nonwoven geotextile separator, connectors/keys or UV ties
• Anchors: steel pins/rebar with washers; extra at perimeters/curves
• Infill: well-graded crushed stone for traffic areas; sandy loam/topsoil for vegetated cells
• Equipment: plate compactor/roller, shovels/rakes, tape, utility knife, hammer
• Edges: timber/metal/concrete restraints for clean terminations

Ordering tip: Calculate coverage by the expanded panel area and add 5–8% for cuts and curves.

---

Step-by-Step: How to Install Geocell Ground Grid

1) Subgrade Preparation

• Strip organics/muck; proof-roll and fix soft spots.
• Set crown or crossfall (≥1–2%) for drainage.
• Compact to spec (typ. 92–95% Mod/Proctor).
• Very weak soils? Place a 2–4” working layer of graded aggregate and compact.

2) Separator & Layout

• Roll nonwoven geotextile full-footprint with 6–12” overlaps to stop fines migration.
• Snap lines so panels pull square to traffic.

3) Deploy & Connect

• Expand the geocell ground grid fully so cells are uniform.
• Connect adjacent sheets with keys/clips or UV ties—no gaps at seams.

4) Anchor

• Pin corners, perimeters, and seams first.
• Field anchors at ~3–5 ft (0.9–1.5 m); tighten spacing at curves, crowns, and transitions.
• On slopes, add crest anchors/tendons per design.

5) Infill & Compaction

• Place infill in 4–6” (100–150 mm) lifts.
  • Traffic surfaces: 3/4” minus, well-graded aggregate.
  • Green/grass: sandy loam/topsoil; seed after compaction.
• Compact each lift to refusal. Finish flush with cell tops (no overfill mounds).

6) Finish & Tie-Ins

• Aggregate finish: add a thin choke for smoothness.
• Vegetated finish: seed and protect until roots knit.
• At asphalt/concrete edges, tuck the grid 6–12” under to prevent shoving.

---

Application Notes (Driveway & Grass)

Geocell Ground Grid for Driveway

• Typical section (light vehicles): 6” cells over nonwoven geotextile; 3/4” minus infill; compacted in two lifts; thin choke.
• Turning/Bin areas: 8” cells plus tighter anchor spacing.
• Edge control: restraints or tuck-under at hardscape interfaces.

Grass Parking / Fire Lanes

• 4” cells; sandy-loam infill; seed and protect during establishment.
• Add subsurface drains on tight clays; limit traffic until the turf binds.

Gravel Alternatives

• A confined gravel driveway performs cleaner than loose stone: less scatter, less rutting, better drainage.

---

Common Mistakes & Fast Fixes

Mistake	Why It Hurts	Fix
Skipping geotextile	Fines migrate; stiffness drops	Full-footprint separator with overlaps
Sparse anchoring	Panels creep at edges/curves	Tighten pin spacing at perimeters & transitions
Overfilling cells	Shoving/ruts under traffic	Finish flush; only a thin choke on top
Weak/wet subgrade	Settlement and pumping	Undercut/bridge with working layer; re-compact
No drainage plan	Freeze–thaw heave, soft edges	Maintain crossfall; provide outlets/edge drains

---

QA/QC & Quick Spec Checklist

• Cell height: 4” paths/green, 6” drive lanes, 8” heavy turning.
• Materials: UV-stabilized HDPE; documented weld strength.
• Accessories: Anchors, connectors, edge restraints, geotextile.
• Submittals: Installation method statement, test data, O&M notes.
• Verification: Density achieved, straightedge tolerances, clean tie-ins.

---

Where Geogrid Fits (and Why U Might Add It)

Geocells handle 3D confinement. A geogrid delivers planar tensile reinforcement and interlock in base layers or reinforced soil structures. On some projects, U combine both.

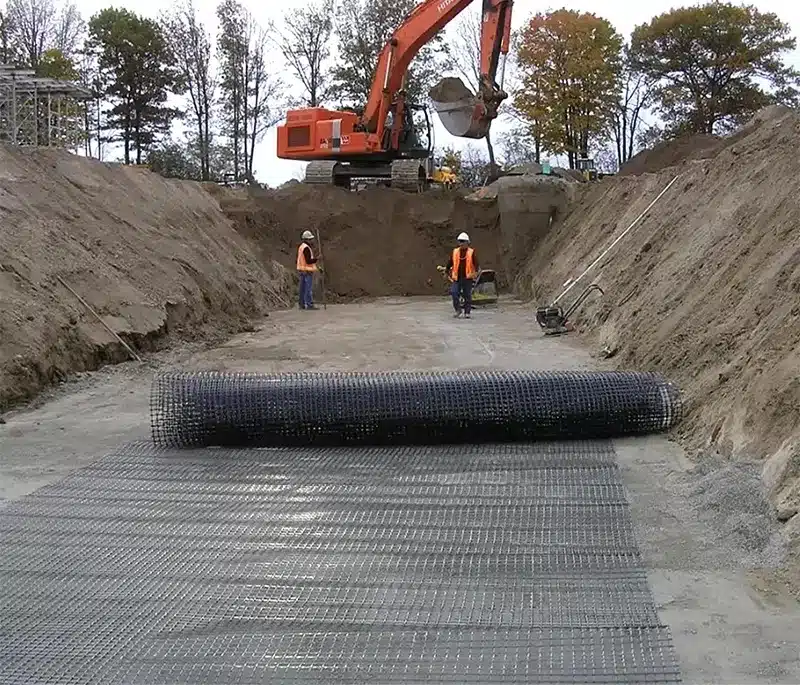

• Base/Subbase stabilization: Use biaxial geogrid under or within the aggregate to raise stiffness before geocell goes down (weak subgrades, heavy cycles).
• Walls/steep slopes: Uniaxial polyester geogrids offer low creep and strong pullout with granular backfill.

Material choices:

• Polyester geogrids / polyester woven geogrids / woven polyester geogrids
  • High tensile modulus at service strain; excellent long-term creep control.
  • Common for MSE walls and steep slopes; often coated (e.g., PVC) for durability.
• Polyester geogrid in particular shines where long design life and sustained loads matter.
• Polypropylene/HDPE biaxials are quick performers for haul roads and yards where two-way restraint is needed fast.

---

Conclusion

If U want a thinner, tougher base that stays smooth under weather and wheels, install a geocell ground grid using the sequence above—sound subgrade, separator, straight deployment, tight anchoring, dense infill, and clean tie-ins. For weak subgrades or reinforced earth tasks, add geogrid—especially polyester geogrids (including polyester woven geogrids / woven polyester geogrids)—to deliver the tensile capacity soil lacks. Do this, and U hand over driveways, pads, slopes, and green parking that perform like they should—season after season.
