Geocell Slope Protection: When It Works and What Specs Matter

A slope may look stable in dry weather, then lose infill after heavy runoff because anchoring and drainage were treated as secondary details.

Geocell slope protection works when the cellular confinement system, anchor layout, cell depth, infill, drainage path, and slope condition are designed together. It can control erosion and hold infill on many slopes, but it is not a substitute for correcting active slips, poor drainage, or unstable subsoil.

The practical decision is not simply which product costs less per square meter. It is which layer can keep working after compaction, rainfall, construction traffic, and the conditions that matter on this site.

Before a purchase order is released, compare the product data sheet with the drawing, site conditions, installation method, and destination logistics. That small check helps a buyer identify whether two quotations truly cover the same material, roll dimensions, test basis, and delivery scope. It also creates a clear record for the contractor, project engineer, and supplier before site work begins. In B2B projects, clarity at this stage is usually less expensive than explaining a substitution after material reaches the site. Ask the supplier to identify any assumption in writing, especially when a drawing, local soil report, or anchor layout is not available at quotation stage. Confirm the proposed roll layout, joining plan, unloading approach, and inspection records as well, because these logistics affect installation quality and can change the actual project cost.

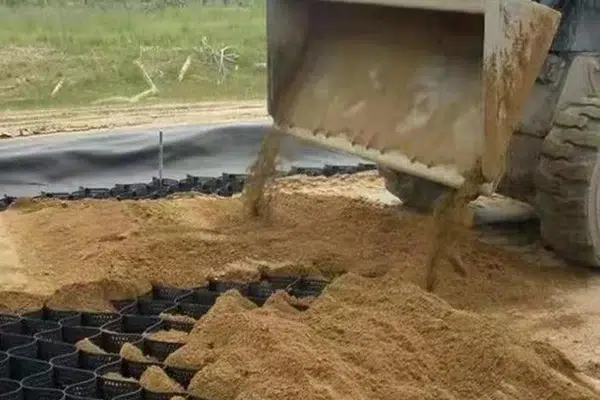

When Geocell Slope Protection Works

Geocells work where a slope needs surface confinement, erosion control, or stable support for topsoil, gravel, or concrete infill. The cells restrict lateral movement of the selected infill, so rainfall and runoff are less likely to wash it down the face.

They are used on embankments, channels, access slopes, and vegetated erosion-control areas. The boundary is important: geocells protect a prepared surface, not a deep rotational failure or uncontrolled groundwater problem. FHWA guidance is useful for understanding how stabilization products sit within the wider civil system. [1]

Cell Depth and Panel Geometry

Cell depth should match the infill and the severity of exposure. Shallow cells can suit vegetated surfaces, while deeper cells provide more confinement for aggregate or higher-energy runoff. MJY product data lists common heights from 50 to 250 mm, but height alone does not define performance.

Weld spacing changes expanded geometry, and strip thickness and texture influence stiffness and interaction with fill. Factory Tip: when a buyer asks only for HDPE geocell for slope, the next questions should be slope angle and infill. A 75 mm vegetated panel and a 200 mm aggregate panel solve different problems.

Anchoring Is Not an Accessory

Anchoring transfers surface loads into the slope and prevents panel creep during placement and service. Anchor length, spacing, crest restraint, and soil holding capacity need to be considered together. A good panel can still move if anchors are undersized or set out without regard to slope geometry.

Field Note: a rainy-season inquiry listed only panel area and cell height. After a review, the contractor added a defined anchor grid and crest restraint before delivery. That clarification was much cheaper than opening a finished surface after the first rainfall.

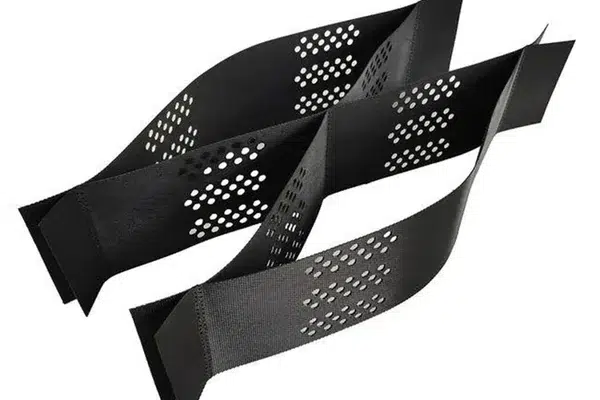

Infill, Perforation, and Drainage

The infill is part of the geocell system, not a decorative finish. Topsoil and seed need a drainage-aware vegetated design. Angular aggregate needs stable confinement. Concrete infill changes both loading and drainage. Perforated strips may support drainage and root interaction when those functions matter.

Expert Insight: many slope jobs specify the visible erosion-control layer carefully while ignoring water behind or beneath it. Seepage exits, surface channels, and hydrostatic pressure should be checked before the panel is installed. Surface confinement cannot compensate for a drainage path that directs water into the slope.

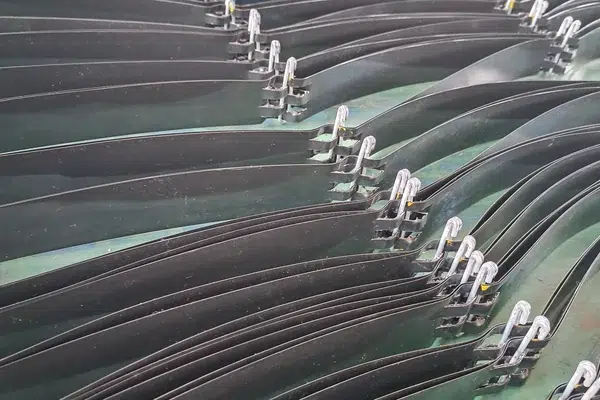

Weld Strength and Permanent Performance

Geocell weld strength matters because the panel is expanded, filled, compacted, and exposed to weather cycles. ASTM D8269 covers tensile properties of geocells and is relevant when comparing panel and weld performance. [2]

QC Check: ask for strip thickness, weld test approach, material type, texture, perforation, and panel dimensions. For permanent works, creep behavior can also matter; ASTM D6992 is a reference for accelerated tensile creep and creep-rupture evaluation. [3]

RFQ Details for a Slope Project

A useful slope RFQ includes angle, length, soil, runoff, infill, cell depth, weld spacing, strip thickness, texture, perforation, anchor concept, panel size, quantity, and destination. This prevents suppliers from quoting panels that look similar but are not equivalent.

Review MJY HDPE geocell slope protection options, broader geocell applications, and civil engineering erosion-control context. IGS education resources provide useful function context. [4]

My View

My view is that geocell slope protection is often underquoted because buyers focus on price per square meter. On a slope, the panel is only one part of the installed system. Cell depth, infill, anchors, drainage, and access all matter. A cheap shallow panel can be wrong for coarse aggregate, heavy runoff, or a long exposed slope. The useful purchasing question is not the geocell price alone, but what must remain stable after the next wet season.

Conclusion

Geocell slope protection can work when cell depth, welding, anchoring, infill, runoff, and drainage are matched to the site.

FAQs

What cell depth is used for slope protection?

Depth depends on slope angle, infill, runoff, and required confinement. Vegetated and aggregate-filled slopes commonly need different depths.

Do geocells need anchors?

Usually yes. Anchor layout and crest restraint stabilize the panel and infill during installation and runoff exposure.

Can geocells repair a failing slope?

No. They protect a prepared surface; an actively slipping slope or groundwater issue needs engineering investigation.

References

1. FHWA Geosynthetic Design and Construction Guidelines ↩
2. ASTM D8269 Standard Test Methods for Tensile Properties of Geocells ↩
3. ASTM D6992 Standard Test Method for Accelerated Tensile Creep and Creep-Rupture of Geosynthetic Materials ↩
4. International Geosynthetics Society Education Resources ↩
