Drainage Geocomposite: When It Replaces Gravel Drainage Layers

Replacing a gravel drainage layer with a thinner geocomposite can save space and hauling, but only if flow capacity remains adequate under load.

Drainage geocomposite can replace or supplement gravel drainage layers when its geonet core, filter geotextile, transmissivity under load, hydraulic gradient, chemical environment, installation protection, and outlet detail match the project. It is useful in landfills, retaining walls, roads, and limited-space drainage, but it is not an automatic substitute for gravel.

Before a purchase order is released, compare the project drawing, site condition, test-data basis, installation method, dimensions, packaging, and delivery scope. This helps project buyers verify that quotations describe the same engineering system rather than materials with similar names but different performance. Confirm receiving inspection, roll identification, storage protection, field handling, panel joining, and acceptance records before shipment. These details reduce avoidable site delays and make it easier to trace the material batch if a project question arises later.

What a Drainage Geocomposite Does

A drainage geocomposite combines an open drainage core with one or more geotextile filter layers. The core provides an in-plane flow path; the geotextile separates and filters adjacent soil, waste, or aggregate. This can create a compact drainage system where importing thick gravel is difficult, costly, or space-consuming.

The key performance concept is transmissivity, the ability to carry liquid in the plane of the material under stated pressure and gradient. ASTM D4716 is a common reference for in-plane flow rate and hydraulic transmissivity. A test value should always be read with its load, gradient, and boundary conditions. [1]

When It Can Replace Gravel

Drainage geocomposite is most useful where a project needs drainage performance with reduced thickness and lower handling weight. Typical cases include landfill leachate collection, retaining-wall backdrains, subgrade drainage, and some covered containment systems. It can reduce aggregate transport and simplify roll installation when access is limited.

MJY composite geonet data lists core thicknesses of 6.3, 7, 8, and 9 mm combined with continuous-filament nonwoven geotextile. That does not mean every thickness fits every job. The correct model depends on overburden load, expected flow, gradient, adjacent materials, and whether one or two filter layers are needed.

Flow Under Compression

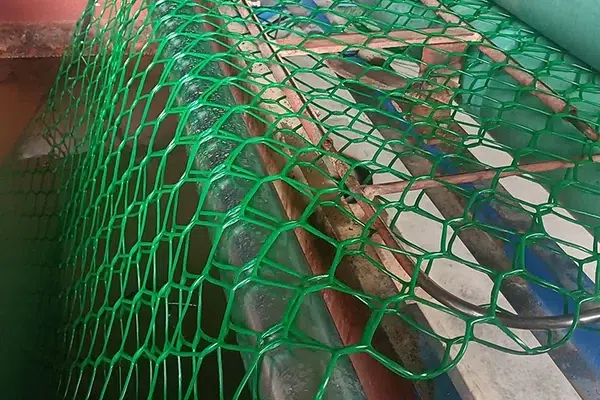

An unloaded sample can appear very open while its drainage channels become smaller under soil, waste, or cover load. Compression resistance and long-term transmissivity therefore matter more than visual thickness. The core must maintain enough flow path after installation and service loading.

Factory Tip: never compare drainage composites using core thickness alone. Ask for the transmissivity value at the relevant normal load and hydraulic gradient. A low-price core may look similar in a warehouse but provide a different flow result when buried below a landfill cover or retaining-wall backfill.

Filter Fabric and Clogging Risk

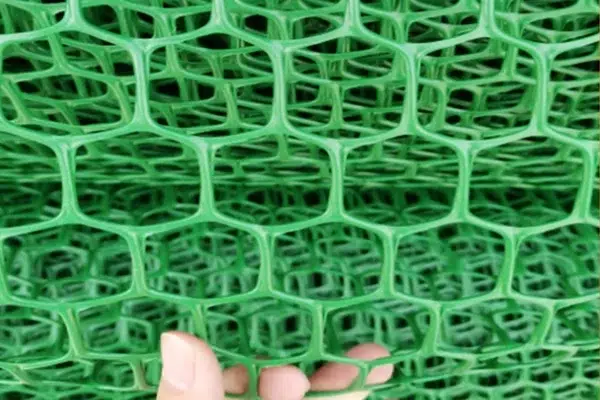

The geotextile filter layer must prevent fine soil intrusion without stopping intended flow. Its opening size, permittivity, mass, and resistance to installation damage must suit the adjacent material. If fines enter the core or the filter clogs, the drainage path can lose capacity.

Field Note: a wall drainage inquiry focused on the geonet core and omitted the soil-side filter. The backfill contained fines that could migrate under wet conditions. The useful system was not simply a net; it required a compatible filter layer and a clear route to a collector pipe or outlet.

Landfills, Walls, and Roads Need Different Checks

Landfills, retaining walls, and road structures place different loads and liquids on a drainage composite. Landfill systems may involve leachate, high overburden, liner interfaces, and regulatory requirements. Retaining walls need drainage exits that prevent pore pressure. Road systems need protected flow paths that are not crushed or clogged by base material.

EPA Subtitle D criteria give regulatory context for landfill liner and leachate collection systems. FHWA guidance is useful for system-level geosynthetic applications. Expert Insight: a composite that works behind a light wall should not be assumed suitable for a high-load landfill drainage layer without project-specific design verification. [2] [3]

RFQ Details Before Ordering

Send application, drawing section, design load, gradient, liquid type, target flow, chemical exposure, filter requirement, core thickness, panel joining method, roll width, quantity, and destination. This lets suppliers compare drainage systems on the actual service condition.

Review MJY geonet and drainage geocomposite options, landfill geosynthetic applications, and filter geotextile materials. IGS resources provide useful function context. [4]

My View

My view is that drainage geocomposite is a system substitution, not merely a lighter version of gravel. It can offer genuine value when space, haul distance, or installation access matter. The decision should be made against a stated flow requirement under the expected load, with a compatible filter fabric and a real discharge route. If those details are missing, comparing roll price or core thickness can create false savings. A practical quotation request includes the section drawing and the drainage outlet plan.

Conclusion

Drainage geocomposite can replace gravel layers where transmissivity, compression resistance, filter compatibility, gradient, outlets, and the actual design load are verified together.

FAQs

What is drainage geocomposite used for?

It is used for in-plane drainage in landfill, retaining wall, road, and other civil systems where a compact drainage path is needed.

Can drainage geocomposite replace gravel?

Sometimes. It must provide adequate flow under the project load and work with compatible filter layers and outlets.

Why does transmissivity matter?

It measures in-plane flow capability under stated conditions. A drainage core should be selected for flow under load, not its unloaded appearance.
