Geotextile Bags: Uses in Coastal Protection, Rivers, and Erosion Control

A geotextile bag can control erosion only when fabric, seam, fill, placement, and water force are treated as one system.

Geotextile bags, often searched in Spanish as bolsas de geotextil, are filled geotextile units used for coastal protection, riverbank support, temporary flood works, and erosion control. Their performance depends on fabric filtration, tensile and seam strength, fill material, filling pressure, placement geometry, ultraviolet exposure, and hydraulic loading.

Before placing an order, compare the project drawing, site condition, installation method, roll or bag dimensions, and delivery scope. This confirms that competing quotations cover the same system rather than products with similar names but different field performance. Confirm the test-data basis, inspection responsibility, and packaging details before the shipment is released, because these points directly affect site handling and acceptance.

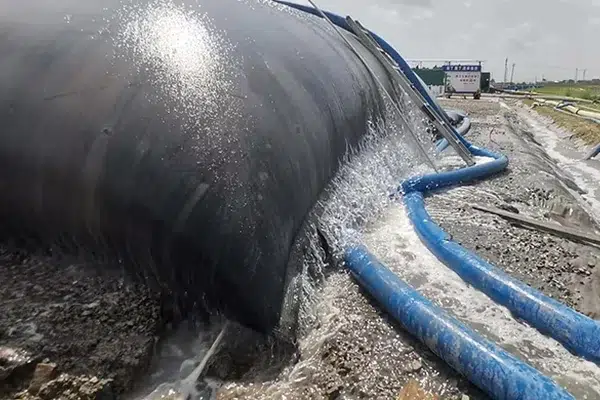

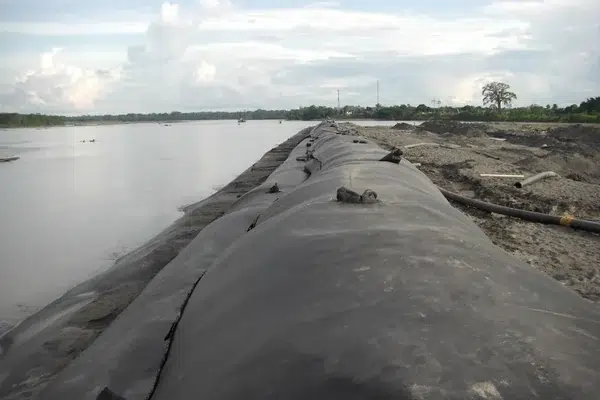

Where Geotextile Bags Work

Geotextile bags are used where a filled textile unit can provide flexible mass, filtration, and surface protection. Common uses include riverbank protection, coastal revetments, temporary flood barriers, scour control, and slope toe support. The correct application depends on hydraulic conditions and the stability of the foundation beneath the bags.

They are not a universal replacement for rock armour, sheet piles, or engineered revetments. Coastal and river projects should consider wave action, current velocity, expected water-level change, abrasion, and toe stability. The USACE Coastal Engineering Manual is a useful reference for the wider coastal engineering context. [1]

Fabric, Opening Size, and Filtration

The fabric must hold the selected fill while allowing controlled water passage without losing fine particles. Apparent opening size, permeability, and filtration stability must be considered against the fill and the adjacent soil. A bag filled with sand behaves differently from one filled with dewatered sediment or granular material.

Factory Tip: do not select a bag fabric by unit weight alone. Ask what will be pumped or placed inside, whether slurry conditioning is used, and what the bag will contact outside. A fabric that is strong but poorly matched to the fill can clog or lose fines, which changes both drainage and bag shape.

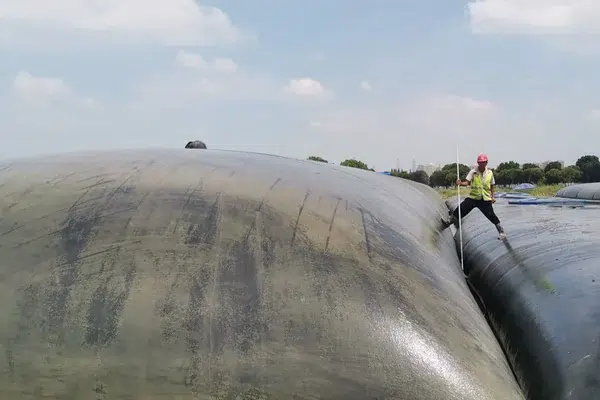

Seam Strength and Filling Pressure

Seams are a critical strength line because the bag is filled, handled, stacked, and exposed to movement. The correct sewing pattern, seam allowance, thread, and closure detail depend on bag size and filling method. ASTM D4884 covers strength of sewn or bonded geotextile seams. [3]

QC Check: review seam test information before comparing prices. A low-cost bag that opens during filling can create a difficult cleanup, loss of fill, and a restart of the placement operation. Filling pressure should be controlled so the bag reaches its intended shape without overstressing seams.

Placement Geometry and Foundation

Bag placement needs a stable foundation and an arrangement that resists sliding, displacement, and scour. On a bank or shoreline, the toe often determines whether the visible upper layer remains in place. The placement pattern, overlap, bag orientation, and access method should follow the project design.

Field Note: a buyer once requested only a bag volume and fabric weight for a riverbank job. The more consequential question was how the first row would be keyed into the toe. Without that detail, flowing water could undermine the front edge even if every bag met the requested textile strength.

UV, Abrasion, and Service Life

Sunlight, abrasion, debris, and repeated hydraulic movement can control the service life of exposed geotextile bags. The bag should be matched to the expected exposure and maintained where the project design requires it. ASTM D4595 provides a wide-width strip tensile method relevant to fabric comparison. [2]

Expert Insight: a higher fabric strength does not automatically solve an exposed coastal problem. The project may require a protective cover, an outer sacrificial layer, different fill, or a revised layout. Evaluate the water and abrasion environment before assuming a standard bag can deliver a long-term revetment.

RFQ Details Buyers Should Send

Send application, hydraulic condition, bank or shore geometry, foundation detail, fill material, bag dimensions, fabric type, seam requirement, UV exposure, quantity, and destination. These details allow a supplier to quote an erosion-control system rather than a generic textile container.

Review MJY geotextile bag erosion-control options and link the product decision to civil engineering application conditions. IGS education resources help explain geosynthetic functions. [4]

My View

My view is that geotextile bags should be purchased as a hydraulic and placement system, not as empty fabric containers. Buyers often compare dimensions and GSM first, but the more useful questions are what enters the bag, what water acts on it, and how it is held at the toe. A clear fill method and seam specification can prevent costly field delays. For coastal and river work, the supplier should receive the section drawing or at least a realistic description of water, bank, and installation access before a final recommendation is made.

Conclusion

Geotextile bags can support coastal, river, and erosion-control work when filtration, seams, fill, placement geometry, foundation, and exposure are specified together.

FAQs

What are geotextile bags used for?

They are used for erosion control, river and coastal protection, flood work, scour control, and some filled sediment applications.

Why does geotextile bag seam strength matter?

Seams carry filling and handling loads. A weak or unsuitable seam can open during filling or movement, causing loss of fill and rework.

Can geotextile bags replace rock protection?

Sometimes they are an engineered alternative, but suitability depends on hydraulic forces, exposure, foundation, layout, and project design.

References

1. USACE Coastal Engineering Manual ↩
2. ASTM D4595 Standard Test Method for Tensile Properties of Geotextiles by the Wide-Width Strip Method ↩
3. ASTM D4884 Standard Test Method for Strength of Sewn or Bonded Seams of Geotextiles ↩
4. International Geosynthetics Society Education Resources ↩
